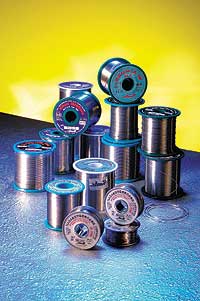

Quicker wetting, absolute consistency and special processing make Almit solder wire the unchallenged leader in manual and automated soldering applications industry- wide. Using the purest raw materials, solder properties are guaranteed to be constant from the start of the wire to the end of the reel - and on to the next reel. Unique patented flux chemistry processing removes the naturally occuring water from the flux rosin to completely eliminate spattering and provide fast and efficient wetting. It also makes Almit solder wire ideal for auto-soldering equipment: now you can operate safely close to sensitive fine-geometry circuit areas. Quality comes directly from Almit's proven consistency. You waste less solder wire, achieve greater throughput, and reduce reject rates. The result is more productivity for less cost.
Specifications
Code |
Composition |
Characteristics |
KR-19 SH RMA |
Sn60/Pb40 |
• Melting range 183°c - 188°c • No clean solder for high density SMT, PCB robotic works |
KR-19 SH RMA Ag |
Sn62/Pb36/Ag2 |
• Melting point 179°c • Mildly activated wire for electronic and military applications • Good wetting and high reliability |
KR-19 60A |
Sn60/Pb40 |
• Melting range 183°c - 188°c • Ideal for soldering difficult metals (eg. Stainless steel, zinc/nickel plated) • Good soldering to eliminate faults (eg. Imperfect soldering, solder ball) |
GUMMIX-19 |
Sn60/Pb40 |
• Melting range 183°c - 188°c • No flux spattering or peeling • No clean after coating • Higher flux softening temperature suitable for high temperature operation • Flux residue never hardens or flakes off |
KR-15 |
Sn43/Pb43/Bi14 | • Melting range 135°c - 165°c • Low temperature with reliable joint strength |
| KR-28 | Sn8/Pb92 | • Melting range 280°c - 305°c • Suitable for high temperature applications |
| HR-19M | Sn60/Pb40 | • Melting range 183°c - 188°c • Ideal for soldering difficult metals (eg. Stainless steel, zinc/nickel plated) • Good soldering to eliminate faults (eg. Imperfect soldering, solder ball) |
| KR-19 SH SJ-7 | Sn/Pb/Ag/Bi | • Melting range 177 - 199°c • Triple tensile strength solder • Suitable for TV/Radio/Aerospace/Satellite applications |
*
All above wires are available in 0.5mm to 1.6mm diameters |
||
