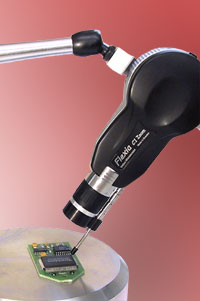

  Flexia C1 Video Microscope

    Flexia is a lightweight, hand-held video microscope
   equipped with integrated "Ring-Light" illumination and
   "Zoom Unit".

   Flexia has a very wide field of applications. Material and
   components that, normally, cannot be inspected through
   a microscope, can be seen in high magnification.
   *(Magnifications of up to 170x can be seen on a 15" monitor).

    Flexia can be attached to various types of stands.
  Video monitors of any kind can be used. Battery-Driven for
  mobile applications or, for workbench/indoor applications,
  connect to 230v AC.

  If you want to save pictures, you can choose from any of
  our two frame-grabbing options, with suitable software
  systems. These pictures can then be saved onto PC.

 It can be used for Industrial applications, such as tools, machines, turbine blades, aircraft
 components, concrete and plastics and much, much more.

  Download information sheet in .pdf format


Flexia C1 Accessories


Flexia C1 Specifications

IMAGE SENSOR	1/4" COLOUR CCD, 510(H) X 582(V) PIXELS.
MAGNIFICATION	18x - 200x (Depending on objectives) ON A 15" MONITOR.
ILLUMINATION	INTEGRATED RING-LIGHT, WHITE LED, 4000mcd, 7800°K
FIELD OF VIEW	5 - 30mm
FIXED FOCAL LENGTH	13 - 200mm
STORAGE ENVIRONMENT	-20°C - +60°C, MAX. 98% RH, NON-CONDENSING.
OPERATING ENVIRONMENT	0° - +45°C, MAX. 95% RH, NON-CONDENSING.
POWER SOURCE	DC POWER SUPPLY OR POWERED DIRECTLY BY HANDHELD 4" MONITOR.
SIZE	140 x 50 x 36mm ( L x H x W ).
WEIGHT	180g MAX.

Objective Lens Specifications

Lens	Field of view (mm)	Working distance (mm)	Depth of field (mm)	Magnification 6.4" TFT LCD	Magnification Nutex USB-framegrabber *	Magnification Hasotec-framegrabber *	Magnification Samsung 15" 152MP
C1 with zoom	14,5 - 3,8	82 - 8	4 - 1	x9 - 30	x12 - 40	x15 - 49	x22 - 77
C1 without zoom	2,55	22	1	x48	x64	x76	x120
C1 without lens or zoom	27,5	260	10	x4,8	x6,4	x7,6	x12

C1 with 150x lens	1,55	6,5	---	x78	x114	x125	x195

*with 14" Laptop 1024 x 768 pixel resolution.
